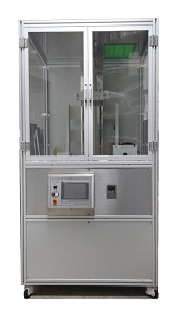

  Dip Coater ZID-6D (multi-layer coater)



   When dip coating into more than one solution reservoir is desired, the Multi Vessel offers a programmable, X-axis tablel that can house up to 5  vessels of solution for cleaning, multiple solution deposition cycles and rinse sequences.











ÇÁ·Î±×·¥ ¹× Hardware

Stroke length(mm)

0~300

ÃÖ´ë ±âÆÇ »çÀÌÁî(mm)

300x300

Maximum load(Kg)

2

Insertion speed(mm/min)

Min 0.6,

Max 1000 programmable

Withdrawal speed(mm/min) Min 0.6

speed resolutiom, um

10

Dipping time(sec)

µ¿ÀÛ ¼Óµµ

programmable

by S/W

Communication port

PLC controller

Power 220ACV, 5A standard
Dimensions WxDxH (mm)

1000x600x800

Shipping weight(Kg)

25

vessel Optional
Personal Computer Optional
Operating software Included
