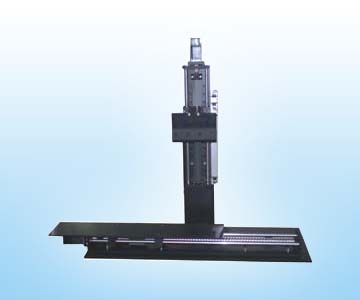

 Dip coater, ZID-3D

    When dip coating into more than one solution reservoir is desired, the Multi Vessel offers a programmable, X-axis tablel that can house up to 5 vessels of solution for cleaning, multiple solution deposition cycles and rinse sequences

                 D-controller





Reliability

  • Optional vessel
  • 1 년간 품질 보증 ( 부품 및 인력)
  • 고객에 대한 무제한 application 제공
  • 사용자의 요구에 의한 자동화 시스템 제공



프로그램 및 Hardware

Stroke length(mm)

0~150

Max. substrate(mm)

150x150

Maximum load(Kg)

1

Insertion speed(mm/min)

Min 0.6,

Max 1000 programmable

Withdrawal speed(mm/min) Min 0.6

speed resolutiom, um

10

Dipping time(sec)

동작 속도

programmable

by S/W

Communication port

PLC controller

Power 220ACV, 3A standard
Dimensions WxDxH (mm)

800x500x300

Shipping weight(Kg)

18

vessel Optional
Personal Computer Optional
Operating software Included
